00522121 - MCD XR5 Rally Car Competition RTR 26cc
|
Out Of Stock
Part Number: 00522121
Manufacturer: MCD
Manufacturer Part No: 00522121
|
The Tuned Pipe is shown as an option part and is Not Included! The RTR Rally will come with a standard Can Muffler.

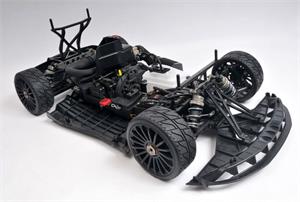

MCD XR5 Rally Car - Ready to Run
We proudly reveal the XR5 Rally, built on the new proven 5 series MCD 4WD chassis. The XR5 carries the same finest accessories & parts with the super-sport XR-5 such as the rear diffuser, front bumper and the side guards. In addition to those parts the XR5 has a unique rear wing, top air intake, side mirros, top antennas and a super rigid roll-cage designed particularly for the XR5 body which increases the robustness of the car.
The new XR5 Rally will be available in FT(Factory Team) and Competition versions.
The XR5 Rally Competion RTR Includes:
* Factory painted and decaled body * 26cc 2-cycle Engine with Can Muffler * 2.4GHz Radio System * Servos and Battery Installed * White Spot Compound Tarmac Tires * Instant Fun Right Out of the Box!
The XR5 Rally Competition Features
- Top of the line competition on-road super sports car
- Easy assembly/dis-assembly
- Easy maintenance
- Centralized and compacted parts layout on chassis
- Elite racing design ultra-durable high performance parts
- Fifth generation MCD chassis & suspension arms
- Sophisticated full-time 4WD Shaft Driven mechanics
- Ultra strengthened CCD drive shaft and axle
- New easy gear mesh system
- Easily removable one-piece electronics tray
- CNC machined 5083 alloy chassis
- Strengthened long wishbones
- Solid and durable aerodynamic side guards
- No-Stress-Effect polyamide front bumper
- Solid and durable rear diffuser
- Easily removable composite front, rear and center diff houses
- Ultra durable front and rear adjustable brake system
- Rear-brake only servo slot
- 5 mm alloy front and rear towers
- Optimized multiple shock mounting holes
- Coil-over extended composite shock absorbers
- Ultra hardened steel transmission gears
- New ball cup-joints
- Improved brake linkage
- Super-Cooling V5 air ventilation system (Optional)
- New Viper Racing Air Filters
- New Barracuda G performance exhaust improved for V5 Chassis (Optional)
- Adjustable CG
- Adjustable weight distribution
- Molded fuel tank with shake absorbing separators
- Fully composite body accessories
Technical Specifications |
Length |
: 910 mm |
Width |
: 470 mm |
Overall height |
: 250 mm |
Ground clearance |
: 25-40 mm |
Weight |
: 13.3kg - 13.7kg (depending on equipment installed) |
Wheelbase |
: 565 mm ±8 mm (adjustable) |
Trackwidth |
: 402mm
|
Chassis material |
: Alloy (4mm) |
Suspension |
: Non-parallel non-line independent |
Caster angle |
: 8° - 18° adjustable |
Camber angle |
: Adjustable |
Toe angle |
: In-board and out-board adjustable |
Anti-squat |
: 3° |
Kick-up |
: 8°-10° (adjustable) |
Shock absorber |
: Coil-over Oil-filled |
Transmission |
: Full-Time 4WD Shaft driven |
Gear ratio |
: 7,88:1 (18 available 7,44:1 to 10,67:1) |
Tyre size |
: 65 x 160 mm (Rossa HS Ultra Grip Compound) |
Competition vs Factory Team comparison chart:
|
FT
|
Competition
|
Ultra strengthened chrome CCD drive shaft and axle
|
STD
|
STD
|
8620 differential spiral bevel gears
|
STD
|
STD
|
Front, center and rear 90° Adaptive Lock Differential
|
STD
|
OPT
|
Composite planetary differential case with 8620 steel gears
|
-
|
STD
|
Easily removable one-piece electronics tray
|
STD
|
STD
|
CNC machined, lightened 7075 aircraft alloy chassis
|
STD
|
OPT
|
CNC machined 5083 alloy chassis
|
-
|
STD
|
Extended wish-bones
|
Long Fiber Composite
|
Long Fiber Composite
|
Rossa HS Ultra Grip
|
STD
Blue Compound
|
OPT
|
Rossa HS Ultra Grip
|
OPT
|
STD
White compound
|
24 mm hexagonal rim-blocks
|
STD
|
STD
|
Composite molded durable side guards
|
STD
|
STD
|
Easily removable composite front, rear and center diff houses
|
STD
|
STD
|
Ultra durable front and rear adjustable steel disc brake rotors and pads
|
Front Double Discs
Bronze Pads
|
Single Disc
Steel Pads
|
CNC Machined 7075 air craft alloy front and rear towers
|
5 mm Lightened & Anodized
|
OPT
|
Optimized multiple suspension holes
|
2 shock absorber
3 roll-center linkage
|
2 shock absorber
3 roll-center linkage
|
Coil-over extended composite shock absorbers
|
STD
with Internal High Pressure Cell System
|
STD
|
Alloy shock cap and ring
|
STD
|
OPT
|
Composite shock cap and ring
|
-
|
STD
|
Ultra hardened steel transmission gears
|
STD
Lightened
|
STD
|
Fully adjustable bearing sway bars
|
STD
|
OPT
|
No-Stress effect poly-amide front and rear bumper
|
STD
|
STD
|
Ball output couplings
|
STD
|
STD
|
Barracuda V2 G performance Tune Pipe
|
OPT
|
OPT
|
Super-Cooling V5 air ventilation system
|
Optional with Barracuda V2
Tune Pipe
|
Optional with Barracuda V2
Tune Pipe
|
Rear brake only servo slot
|
STD
|
STD
|
Viper Racing Air Filters
|
STD
|
STD
|
Adjustable inboard and outboard toe with optional inserts
|
STD
|
OPT
|
Adjustable kick-up 8°-10° (with optional brackets)
|
STD
|
OPT
|
Adjustable 0°-3° anti-squat (with optional brackets)
|
STD
|
OPT
|
Front rear central 60° 90° 120° Self locking diffs
|
OPT
|
OPT
(available with adaptive lock diff only)
|
Pre-cut XS-5 Decal Set
|
STD
|
STD
|
Fully composite body accessories
|
STD
|
STD
|
Please note that the decals on photos are prototype and may be subject to minor changes.
|
