RC4 - RC4 Personal Transponder

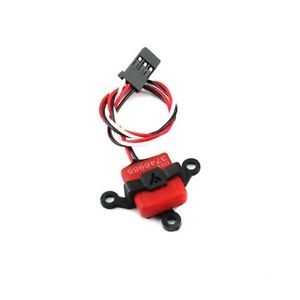

This is the MYLAPS Personal RC4 Hybrid Direct Powered TranspondeR.

Features:

• Half the size, half the weight of the original

• Low voltage operability: 2.8-16 Volt compatible
• Comes with a separate holder, so you can easily switch transponders between different cars
• Better quality cable (PTFE) that is fuel resistant
• 1-4 cell LiPo compatible
• Fully hybrid:
  • 100% compatible with RC2/RC3 Timing Systems (previously AMBrc)
  • 100% compatible with RC4, and ready for the future

Specifications:
Dimensions (excluding holder) (WxLxH): 16x19x6mm
Weight: 4.7g (including holder)
Operating voltage: 2.8 - 16.0 V
Power consumption*: 19 mA
Wire isolation**: PTFE
Quick change holder: Yes
Connector: Generic receiver 3-pole

* Measured at 6.0 volt (receiver output)
** Gasoline/Nitro-methane resistant, no aging
