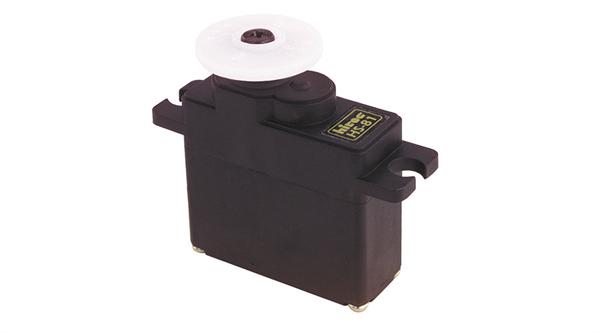

HS-81 Micro Servo, 42oz/in, .09sec.

<< Previous in Hitec Electornics Next in Hitec Electornics >>

List Price: $16.89
Your Price: $12.99
Out Of Stock
Part Number: 31081S
Manufacturer: Hitec
Manufacturer Part No: 31081S

Control System: +Pulse Width Control 1500usec Neutral
Required Pulse: 3-5 Volt Peak to Peak Square Wave
Operating Voltage: 4.8-6.0 Volts
Operating Temperature Range: -20 to +60 Degree C
Operating Speed (4.8V): 0.11sec/60° at no load
Operating Speed (6.0V): 0.09sec/60° at no load
Stall Torque (4.8V): 36.10 oz/in. (
Stall Torque (6.0V): 41.66 oz/in. (
Operating Angle: 40 Deg. one side pulse traveling 400usec
360 Modifiable: No
Direction: Clockwise/Pulse Traveling 1500 to 1900usec
Current Drain (4.8V): 8.8mA/idle and 220mA no load operating
Current Drain (6.0V): 9.1mA/idle and 280mA no load operating
Dead Band Width: 8usec
Motor Type: 3 Pole Ferrite
Potentiometer Drive: Direct Drive
Bearing Type: None, outer case serves as bearing
Gear Type: Nylon
Connector Wire Length: 6.29" (160mm)
Dimensions: 1.17" x 0.47"x 1.16" (29.8 x 12 x 29.6mm)
Weight: 0.62oz (17g)
