MCD 2009 Competition Stadium Truck 4x4
|
MCD Stadium Roller
|
Personalization
Motor Options
Radio Options
RTR Servo Options with Battery & Y Harness
Detailed Description

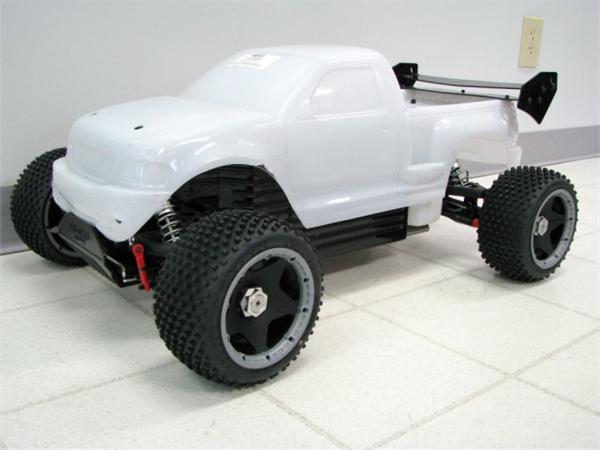

This is the Largescalerc.com exclusive 1/5 Scale 4X4 Stadium Truck. This truck comes as a rolling chassis (no motor / no electronics).
Engine Options:
26cc Fuelie - This is the stock engine that comes in the HPI Baja 5T and Baja SS. The horsepower rating is 2.80 hp.
27cc CY Engine - This is the first step in big bore engines. This engine offers more power and accelleration than the 26cc engine. The horsepower rating is 3.00 hp.
28.5cc GP290 version 2 Chrome Engine - This engine is rated at 3.5 hp with good bottom end power and very good top end speed. This is one of the best and most reliable upgraded motors. The GP290 version 2 has a 40mm boss opening at the cylinder to allow for better fuel / air transfer through the larger transfer ports.
30.5cc Stroker CY Chrome Engine - The 30.5cc stroker engine is known for its bottom-end torque. The stroker crankshaft in this engine increases the piston travel by 2mm giving the engine a longer power stroke. The only drawback to a longer stroke crankshaft is a reduction in top RPM's. This engine works great in vehicles with large / oversized tires. For top speed performance, you should choose an engine with a standard stroke crankshaft and a race ported head. This engine is rated at 3.75 hp.
28.5cc CAT 5 Race Ported 4-bolt Zenoah / F230 Chrome Engine Upgrade / Motor Swap - With this engine option, we remove your stock engine and replace it with the CAT 5 Mfg Race Ported 28.5cc engine.
This motor features a Zenoah 36mm 4-bolt cylinder mounted onto the F230 crankcase. The Zenoah cylinder is used on this motor due to the high quality cylinder plating and the F230 crankcase is used because of it's large transfer port openings. The cylinder ports have been modified, reshaped, and enlarged for greater performance. The cylinder and crankcase have been port-match machined for optimal fuel / air delivery. This allows for larger transfer ports for smoother delivery of fuel & air to the combustion chamber. The ring groove has been modified (releaved) to resist lean seizures due to piston head expansion. This motor is rated at 4.25+ HP. This is an excellent motor option for the person who really likes to go fast. Engine comes with WT-668 carb and clutch with 8,000 RPM spring. ***Due to the high performance of this engine, we recommend that you use 91+ octane gasoline or racing fuel up to 116 octane.*** (This engine is also available with an optional lightened piston. For details on the lightened piston option, call our shop at 219-253-8356.)
30.5cc CAT 5 Race Ported 4-bolt Zenoah / F270 "stroker" Chrome Engine Upgrade / Motor Swap - With this engine option, we remove your stock engine and replace it with the CAT 5 Mfg Race Ported 30.5cc engine.
This motor features a Zenoah 36mm 4-bolt cylinder mounted onto the F270 crankcase. The Zenoah cylinder is used on this motor due to the high quality cylinder plating and the F270 crankcase is used because of it's large transfer port openings. The cylinder ports have been modified, reshaped, and enlarged for greater performance. The cylinder and crankcase have been port-match machined for optimal fuel / air delivery. This allows for larger transfer ports for smoother delivery of fuel & air to the combustion chamber. This engine has a 2mm stroker crankshaft. The top of the piston has been turned down & smoothed on a lathe for proper squish clearance at TDC without stacking gaskets. The ring groove has been modified (releaved) to resist lean seizures due to piston head expansion. This motor is rated at 4.5+ HP. This engine has brutal bottom-end torque with good top RPM. Engine comes with WT-668 carb and clutch with 8,000 RPM spring. ***Due to the high compression of this engine, you MUST use 91+ octane gasoline or racing fuel up to 116 octane.*** (This engine is also available with an optional lightened piston. For details on the lightened piston option, call our shop at 219-253-8356.)
30.5cc Stroker ESP Race Ported 2-Bolt CY Chrome Engine Upgrade / Motor Swap - With this engine option, we remove your stock engine and replace it with the CY 30.5cc ESP Race Ported Stroker Chrome Engine. The 30.5cc stroker engine is known for its bottom-end torque. The stroker crankshaft in this engine increases the piston travel by 2mm giving the engine a longer power stroke. The only drawback to a longer stroke crankshaft is a reduction in top RPM's. However, this engine has had the intake and exhaust ports modified to help with RPM's. This engine works great in vehicles with large / oversized tires. For top speed performance, you should choose an engine with a standard stroke crankshaft and a race ported head. This engine is rated at 4.5 hp.
This Vehicle Includes:
MCD EVO3 Chassis
Shaft-Driven Transmission
Steel Front / Rear Differentials
Steel Center "locked" Differential
Sway Bars on Front & Rear
CAT 5 MFG Wheel Adapters for HPI wheels
Your Choice of HPI Dirt Buster or Tarmac Buster Tires on HPI Wheels
Clear (unpainted) truck body. The lexan truck body comes clear with a white overspray film. You can apply your own colors and design.
Ready to Run Option Includes:
Your choice of high-performance gasoline engines (installed)
High-flow cone air filter with velocity stack (installed)
Radio control system of your choice (installed)
Servos of your choice (Installed)
One "Y" Harness for steering servos (installed)
On / Off Switch (installed)
HPI 3000mAh Battery Pack for receiver (installed)
This truck will ship in 1 to 2 days.
