CAT87495 - HPI Wheel Adapters Set for MCD Vehicles (4) Black v2

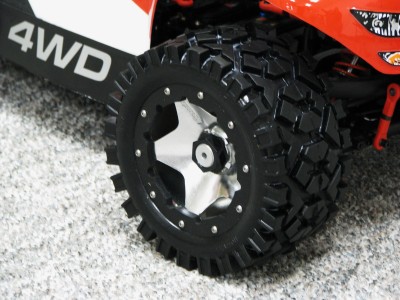

Finally!!!  An HPI wheel adapter for MCD vehicles.  The new version 2 CAT 5 wheel adapters thread on to the MCD axle shaft and are secured into place with 3 set screws.  These adapters are made from 6061-T6 aircraft aluminum and are black anodized for great apperance and long life.  You may use the HPI, JoferUSA, or Dark Soul Racing wheel nuts with these adapters.

Includes:  4 Wheel Adapters with set screws  (wheel nuts are not inclued)

Fits:

• MCD 2008 EVO2 / EVO3 and Newer Competition & Ultimate Models (2 RH Axle Threads, 2 LH Axle Threads)
• MCD 2008 EVO2 / EVO3 and Newer Sport Models (4 RH Axle Threads)
• MCD Generation 1 Proline / Blackline (4 RH Axle Threads)
• FS, IMEX (4 RH Axle Threads)

Installation Instructions:

-         Remove stock wheel and drive square (use the stock drive square as a shim on older Gen. 1 chassis, FS, IMEX)

-         Remove set screws from the wheel adapters

-         Apply med. (blue) thread lock to axle threads

-         Screw adapter onto axle until tight

-         Align the set screw holes with the flats on the axle

-         Apply med. thread lock to set screws and tighten

-    Install wheels

Made in the USA.

Check out the installation video below.
