MCD V4 Competition Monster Truck - 26cc Motor
|
|
List Price: $1,499.99
Your Price: $1,349.99
In Stock
Part Number: MCD005300V4
Manufacturer: MCD
Manufacturer Part No: MCD005300V4
Personalization
* denotes required field
Motor Upgrade*
|

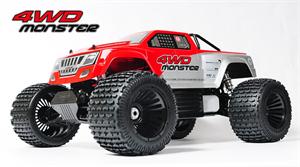

MCD Monster V4 - 4X4
THE GIANT MONSTER!

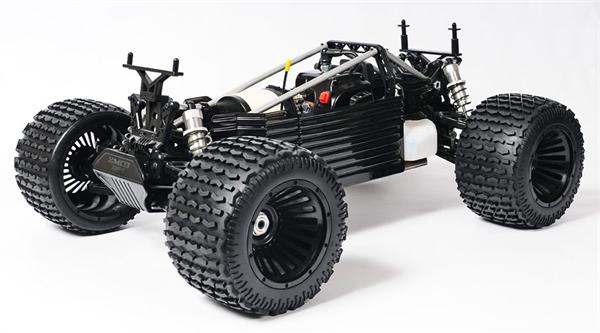

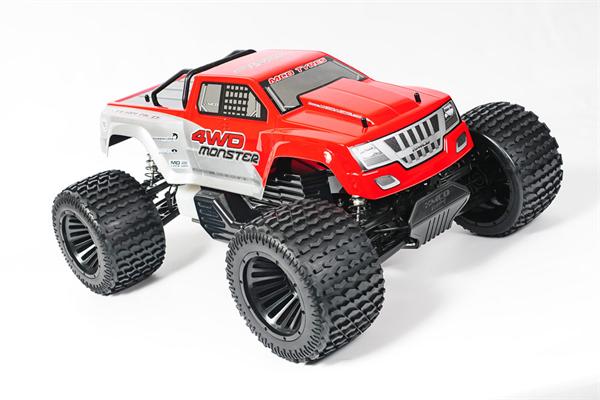

Having the state of the art construction quality and innovative features, the Monster 4WD is the strongest, the most durable and the most fun to drive large scale 4WD in the market. Features such as 126x215mm ultra large Monster Tires, big bore shock absorbers, heavy duty cvd drive shafts makes the Monster V4 the perfect choice for real off-road enthusiasts.
The Monster V4 Features
-
Fourth generation chassis & suspension arms
-
Sophisticated 4WD ShaftDriven mechanics
-

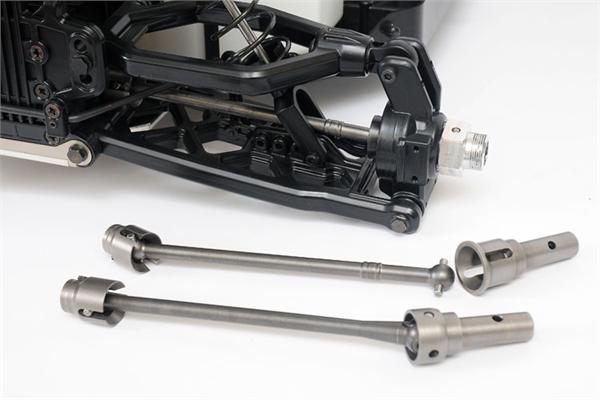

Ultra strenghtened chrome drive shaft and axle
-
Factory assembeled chassis
-

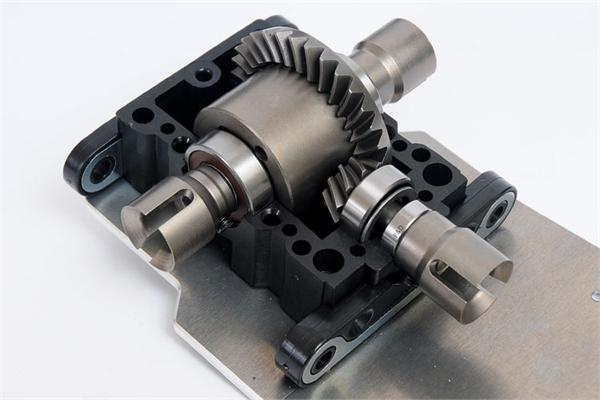

Improved differential spiral bevel gears & diff house
-
Hard anodized alloy roll-cage
-

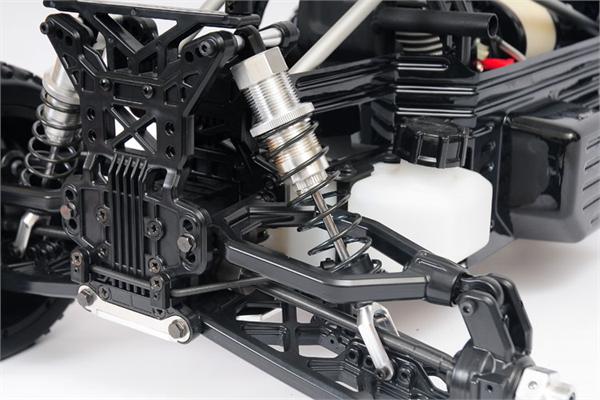

New design coil-over hydraulic shocks & progessive springs
-
CNC machined T6 aircraft alloy chassis
-
New 24 mm hexagonal rim-blocks
-

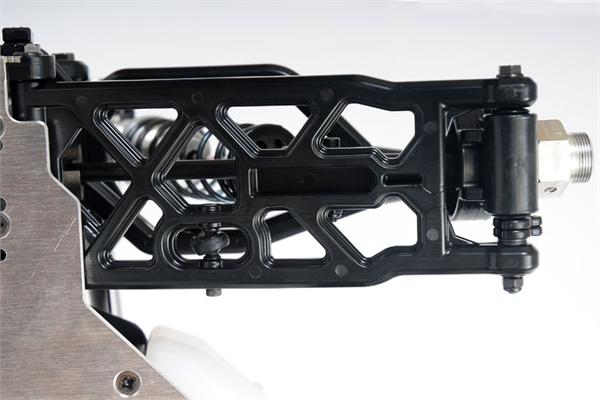

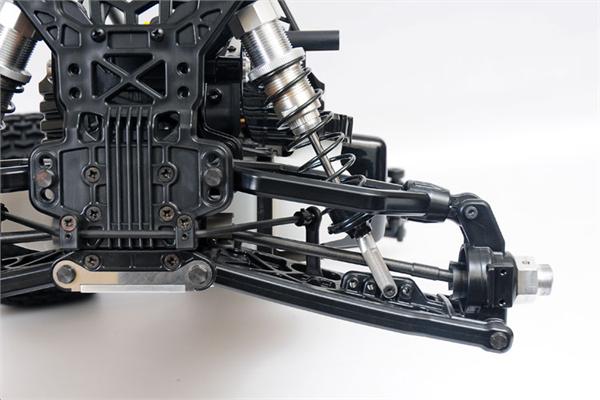

New Strengthened lower&upper long wishbones
-

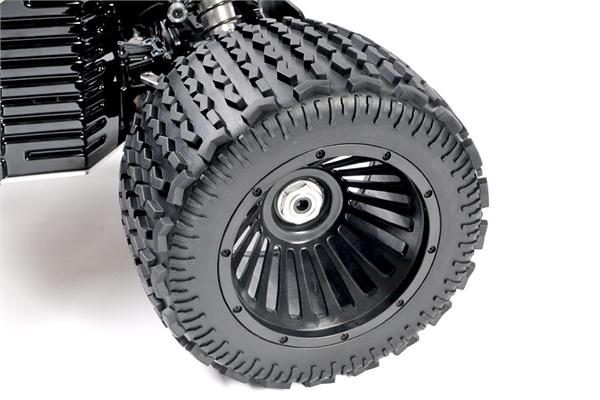

185mm Block-Stud patterned off-road tyres
-

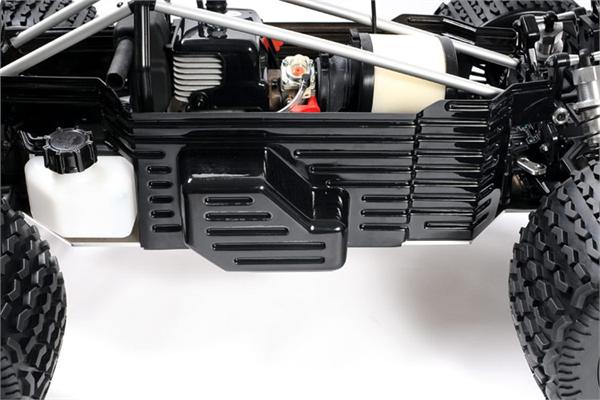

Solid and durable side guards
-
Water-resistant receiver and battery box
-
Clear body shell
-
Ultra durable, heavy duty central steel double disc brake rotors and bronze pads
-

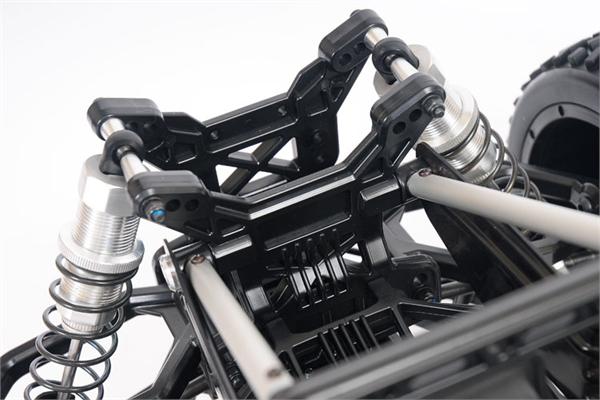

New design extended rear shock towers and shock absorbers
-
New design ultra hardened steel transmission gears
-
New design servo tray
-
Fully adjustable sway bars
-

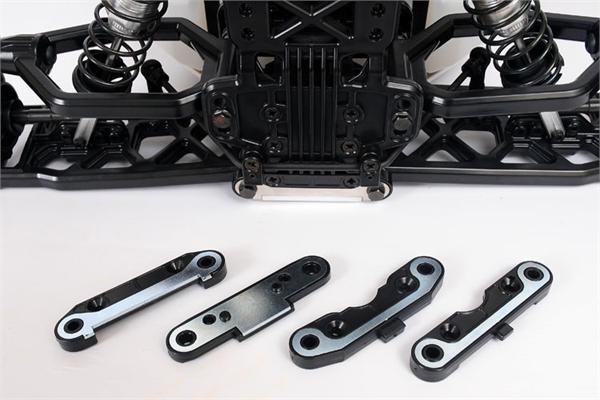

New wishbone brackets
-
No-Stress-Effect polyamid front bumper
-
New enlarged 15 spoke wheels
|
Technical Specifications
|
|
Length
|
: 760 mm
|
|
Width
|
: 570 mm
|
|
Overall height
|
: 370 mm
|
|
Ground clearance
|
: 42-95 mm
|
|
Weight
|
: 13.4 kg
|
|
Wheelbase
|
: 532-540 mm
|
|
Trackwith
|
: 446/446 mm
|
|
Chassis material
|
: T6 Alloy (4mm)
|
|
Suspension
|
: Non-parallel non-line independent
|
|
Caster angle
|
: 6 / 0 Degrees
|
|
Camber angle
|
: Adjustable
|
|
Toe angle
|
: 0-3 Degrees
|
|
Roll Center
|
: 3 Position Adjustable
|
|
Ackerman
|
: 2 Position Adjustable
|
|
Front Kick-up
|
: 10 Degrees
|
|
Rear Squat
|
: 5 Degrees
|
|
Shock absorber
|
: Coilover Oilfilled 3 step adjustable
|
|
Transmission
|
: Full-Time 4WD Shaft driven 3 differentials
|
|
Gear ratio
|
: 4:3 to 12,3:1 (12 different GearBox ratios)
|
|
Tyre size
|
: 126 x 215 mm
|
|
Engine type
|
: Zenoah - CY 23cc, 26cc, 27cc, 29cc *
|
|
|
|
COMPETITION Extra Features
|
|
|
|
Large capacity 800cc fuel tank
|
|
|
Long wheel travel
|
|
|
|
|
|
|
The Competition series are optimized for ultimate challange. Our leading structure and engineering has powered us to race proven handling and durability. You can push the throttle inside the curves and push the limits for many hours during the race.
|
|
Notice! All engines require some modification to allow clearance for the drive shaft. Diagrams of the modification are available upon request. Ready-to-Run packages will have the modification done at our shop.
|
