We Can Make It Ready To Run!

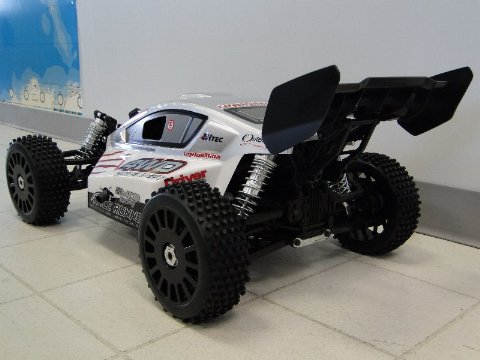

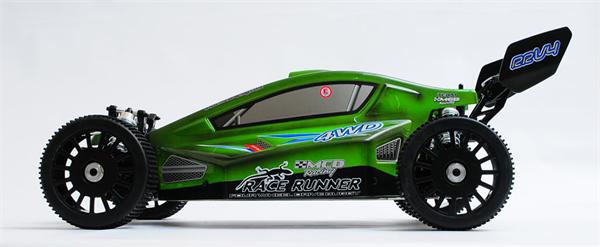

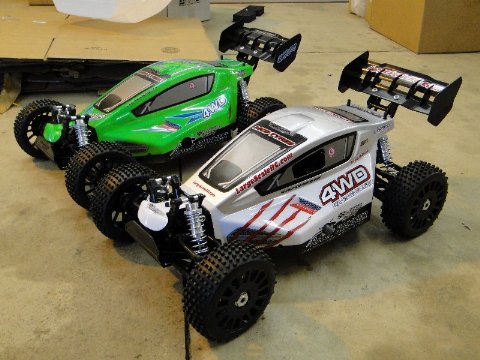

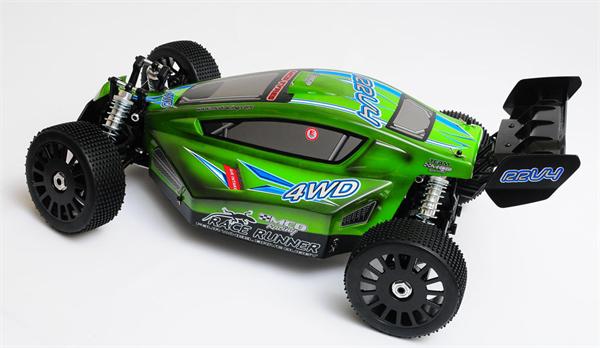

Race Runner V4 -  4X4 - Radio Gear Not Included

BUILT TO WIN!

A masterpiece from the pioneer of the segment. Being champions in 6 countries in 2010, The RRV4 proved that it is peerless in the 4WD large scale off-road market. This fantastic machine is a result of MCD's commitment on constant development throughout the MCD history. At the first drive you will immediately get the impression that the RRV4 represents a step up, both in design and engineering commitment

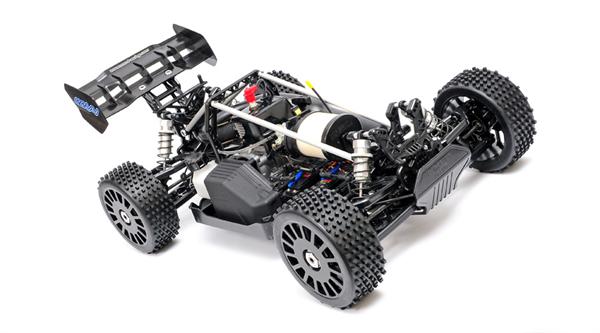

              The RRV4 Features

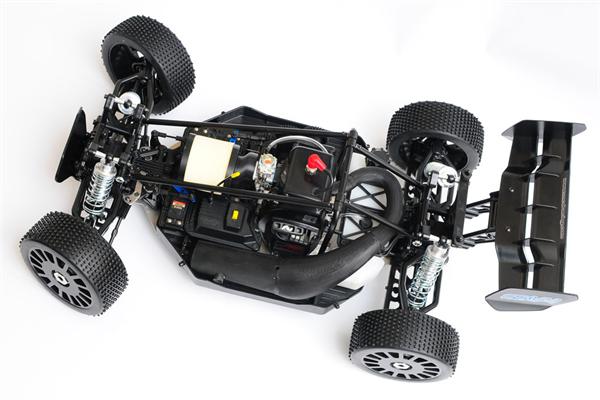

• Fourth generation chassis & suspension arms
• Sophisticated 4WD ShaftDriven mechanics
• Ultra strenghtened chrome drive shaft and axle
• Factory assembeled chassis
• Improved differential spiral bevel gears & diff house
• Hard anodized alloy roll-cage

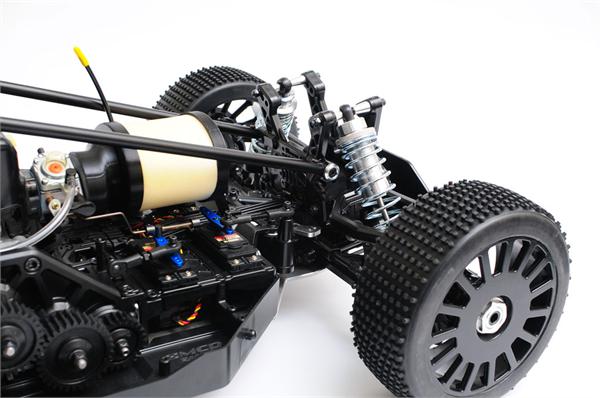

• New design coil-over hydraulic shocks & progessive springs

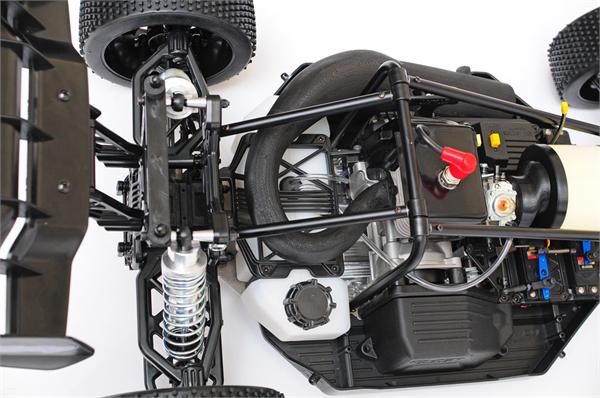

• CNC machined T6 aircraft alloy chassis

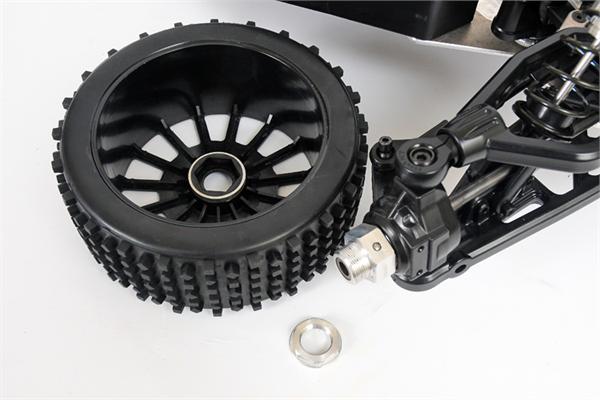

• New 24 mm hexagonal rim-blocks

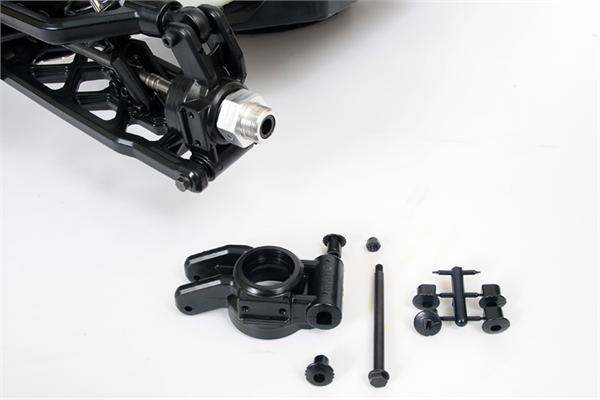

• New Strengthened lower&upper long wishbones
• 185mm Block-Stud patterned off-road tyres
• Solid and durable side guards

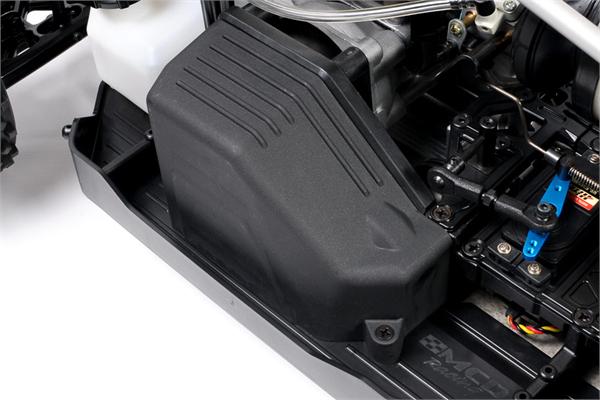

• Water-resistant receiver and battery box
• Clear body shell
• Ultra durable, heavy duty central steel double disc brake rotors and bronze pads

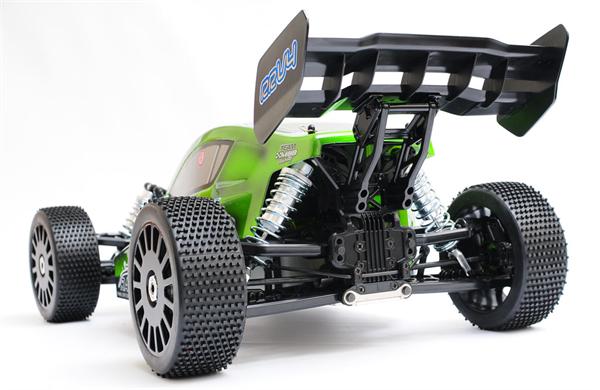

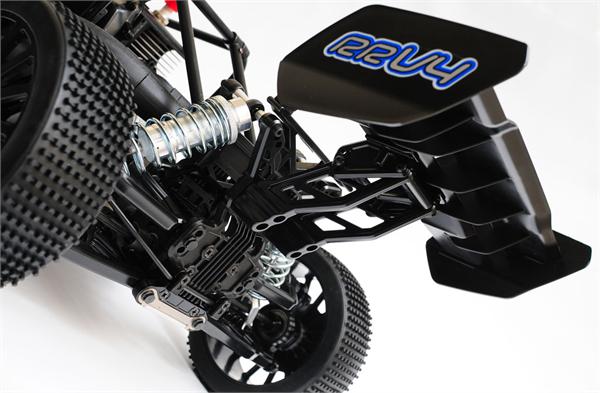

• New design extended rear shock towers and shock absorbers
• New design ultra hardened steel transmission gears

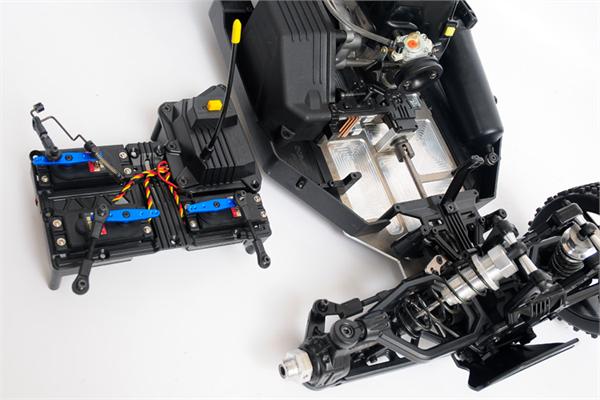

• New design servo tray
• Fully adjustable sway bars

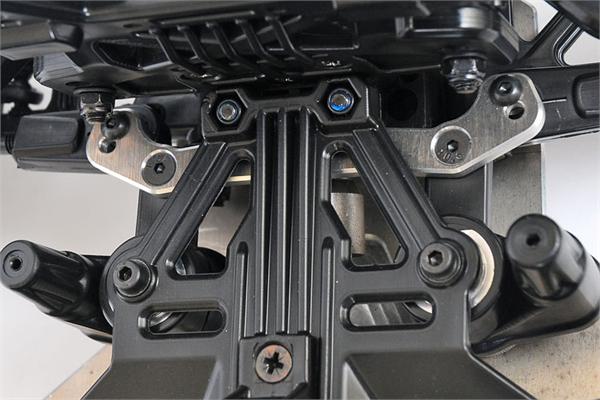

• New  wishbone brackets

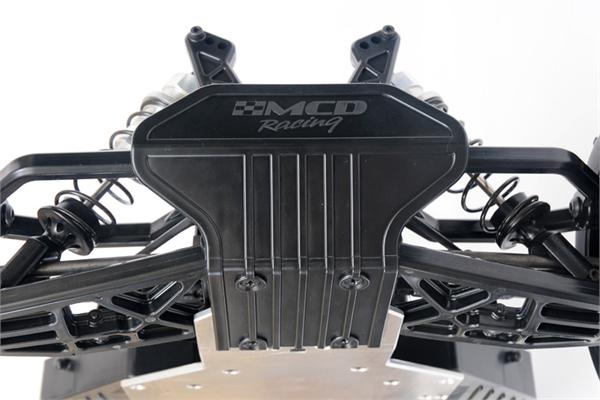

• No-Stress-Effect polyamid front bumper
• New enlarged 15 spoke wheels

Technical Specifications  Length : 820 mm Width : 467 mm Overall height : 335 mm Ground clearance : 25-85 mm Weight : 11.9 kg Wheelbase : 532-540 mm Trackwith : 402/402 mm Chassis material : T6 Alloy (4mm) Suspension : Non-parallel non-line independent  Caster angle : 6 / 0 Degrees Camber angle : Adjustable Toe angle : 0-3 Degrees Roll Center : 3 Position Adjustable Ackerman : 2 Position Adjustable Front Kick-up : 10 Degrees Rear Squat : 5 Degrees Shock absorber : Coilover Oilfilled 3 step adjustable Transmission : Full-Time 4WD Shaft driven 3 differentials Gear ratio  : 4:3 to 12,3:1 (12 different GearBox ratios) Tyre size : 68 x 185 mm Engine type : Zenoah - CY 23cc, 26cc, 27cc, 29cc *       COMPETITION Extra Features   SPORT COMPETITION SUSPENSION SYSTEM     Alloy Shock Body Alloy Shock Fork Machined Hinge Pins Front-Rear Anti Roll Bars Servo Savers with Ball Bearings TRANSMISSION SYSTEM     Front CVD Drive Shafts Hardened CV Drive Shafts Hexagonal Drive Cups Hexagonal Dif. Outputs Alloy Central Dif. Holder All Steel Transmission Gears Steel Gear Drive Block BRAKE SYSTEM     Double Disk Brakes       Steel transmission gears

Required for operation (not included): Engine, 2 ch. Radio, 2x steering servos, 1 throttle/brake servos
