007300V4 - MCD X4 Rally Competition - With 26cc Motor

<< Previous in MCD Racing 4X4 1/5 Scale Next in MCD Racing 4X4 1/5 Scale >>

List Price: $1,499.99
Your Price: $1,359.99
In Stock
Part Number: 007300V4
Manufacturer: MCD
Manufacturer Part No: 007300V4
$20 Oversize Fee Applies to This Item At Checkout!

Personalization

* denotes required field

Motor*
Ready To Run Options*

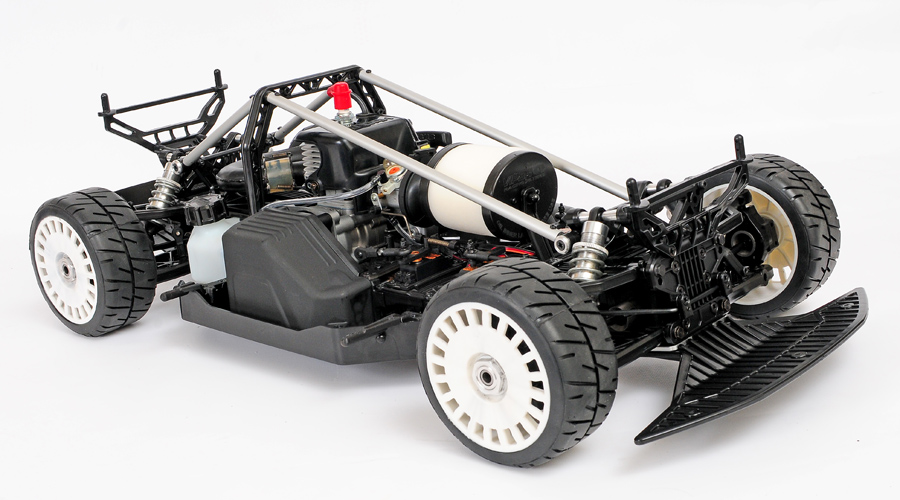

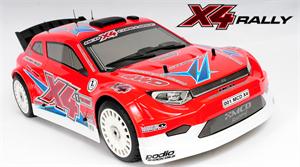

MCD X4 Rally - 4X4 Rally Car

X4 Rally Designed to Race

 Designed to fulfill the expectations of our most passionate clients, the X4 Rally continues the MCD tradition of putting the thrill into racing as a result of track-derived technological innovation. This thrillingly agile, beautifully balanced sporty four-wheel drive rally epitomizes MCD's talent for innovation and design.
 X4's racing experience can be felt not only in terms of pure technological transfer but also on a more emotional level, because of the imposing look that is harmoniously integrated with dynamic appearance that continues the great MCD tradition in a fabulous style.











The X4 Features
  • Fourth generation chassis & suspension arms
  • Sophisticated 4WD ShaftDriven mechanics
  • Ultra strenghtened chrome drive shaft and axle
  • Factory assembeled chassis

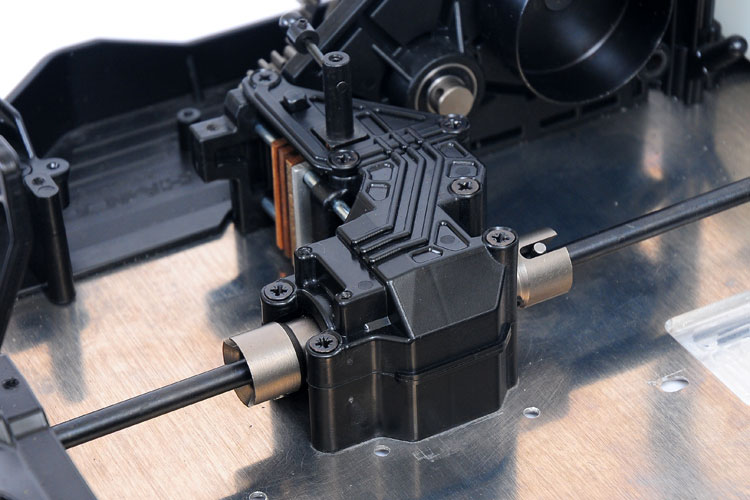

  • Improved differential spiral bevel gears & diff house
  • Hard anodized alloy roll-cage

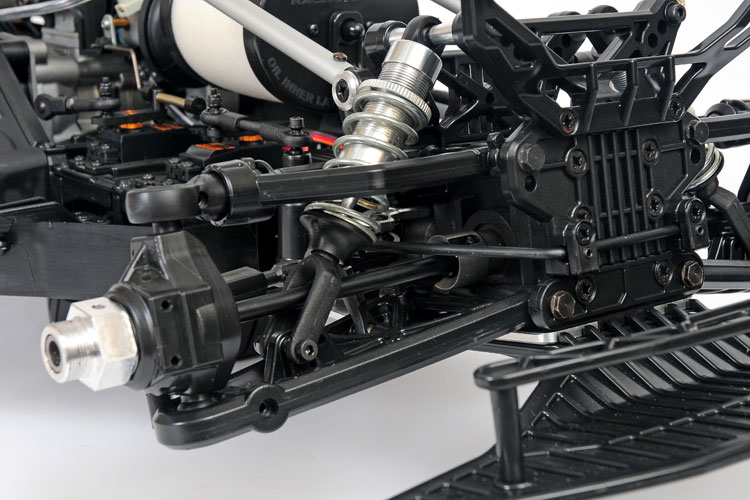

  • New design coil-over hydraulic shocks & progessive springs
  • CNC machined T6 aircraft alloy chassis
  • New 24 mm hexagonal rim-blocks
  • New Strengthened lower&upper long wishbones
  • 185mm Block-Stud patterned off-road tyres
  • Solid and durable side guards
  • Water-resistant receiver and battery box

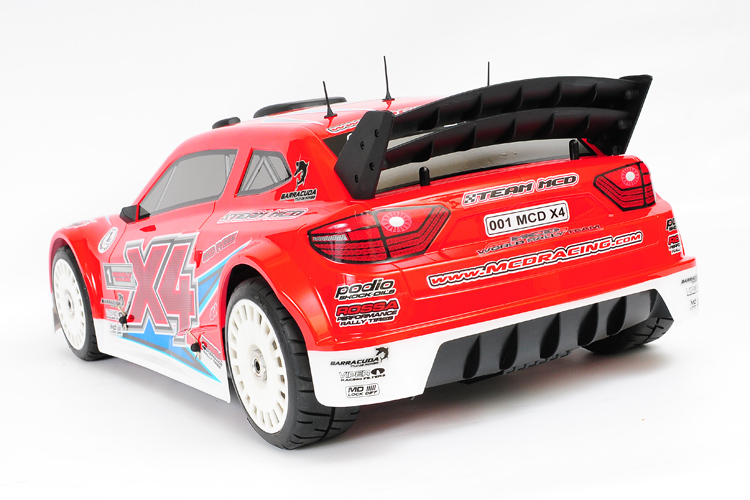

  • Clear body shell

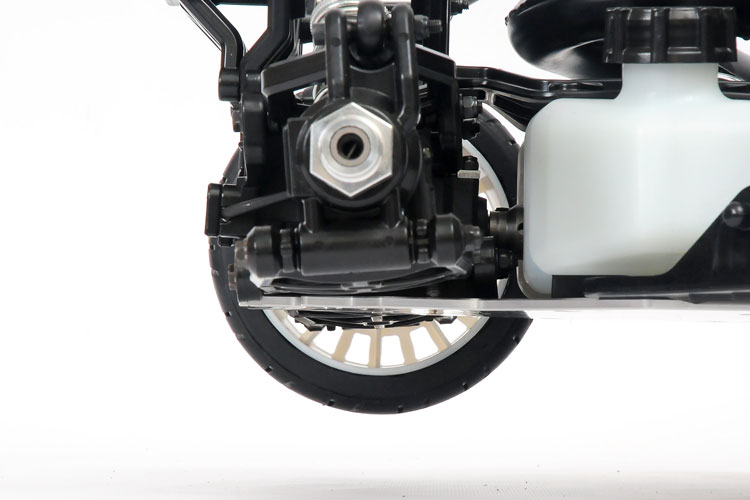

  • Ultra durable, heavy duty central steel double disc brake rotors and bronze pads

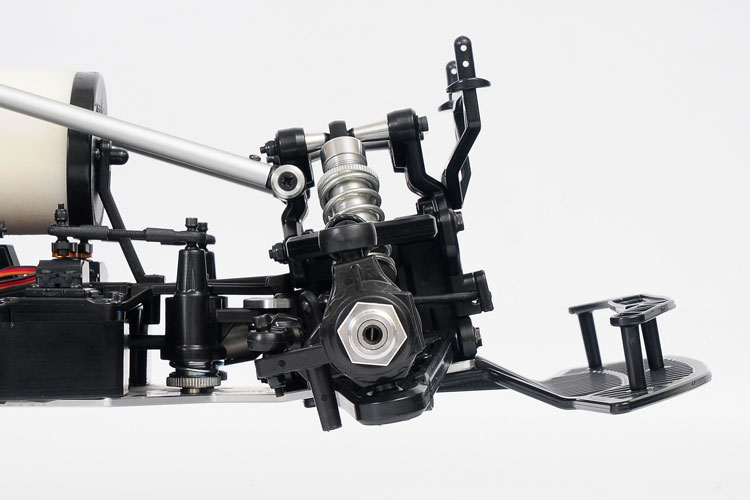

  • New design extended rear shock towers and shock absorbers
  • New design ultra hardened steel transmission gears
  • New design servo tray
  • Fully adjustable sway bars
  • New  wishbone brackets

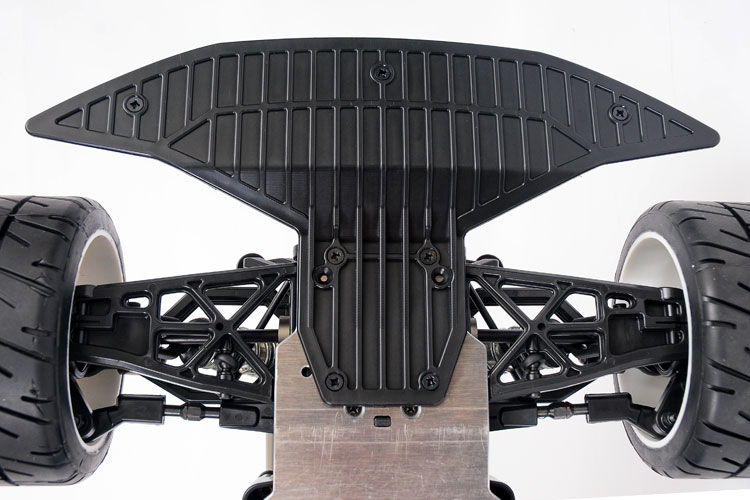

  • No-Stress-Effect polyamid front bumper
  • New enlarged 15 spoke wheels
Technical Specifications
Length
: 852 mm
Width
: 403-407 mm
Overall height
: 281 mm
Ground clearance
: 12-35 mm
Weight
: 11.7 kg
Wheelbase
: 536-544 mm
Trackwith
: 345/345 mm
Chassis material
: T6 Alloy (4mm)
Suspension
: Non-parallel non-line independent
Caster angle
: 6 / 0 Degrees
Camber angle
: Adjustable
Toe angle
: 0-3 Degrees
Roll Center
: 2 Position Adjustable
Ackerman
: 2 Position Adjustable
Front Kick-up
: 10 Degrees
Rear Squat
: 5 Degrees
Shock absorber
: Coilover Oilfilled 3 step adjustable
Transmission
: Full-Time 4WD Shaft driven 3 differentials
Gear ratio
 : 4:3 to 12,3:1 (12 different GearBox ratios)
Tyre size
: 63 x 142 mm
Engine type
: Zenoah - CY 23cc, 26cc, 27cc, 29cc *


COMPETITION Extra Features



SPORT

COMPETITION
SUSPENSION SYSTEM
Alloy Shock Body
Alloy Shock Fork
Machined Hinge Pins
Front-Rear Anti Roll Bars
Servo Savers with Ball Bearings
TRANSMISSION SYSTEM
Front CVD Drive Shafts
Hardened CV Drive Shafts
Hexagonal Drive Cups
Hexagonal Dif. Outputs
Alloy Central Dif. Holder
All Steel Transmission Gears
Steel Gear Drive Block
BRAKE SYSTEM
Double Disk Brakes

Double brakes













Required for operation (not included): Engine, 2 ch. Radio, 2x steering servos, 1 throttle/break servos





The Ready To Run Option Comes with:
1 - DX2E Radio
2 - 5765MG Steering Servos
1 - 755MG Throttle and Brake Servo
1 - 3000 MAH Battery Pack
1 - On/Off Switch
1 - Y-Harness
Professional RTR Setup



X4 Set-Up Sheet
