9200 - Castle Mamba XL Brushless Motor Conversion for HPI Baja 5B, 5T and 5SC

The HPI Baja 5B and 5T have a cult following; devotees worship speed and power, awesome off‐road action and long run times. The rest of the RC car world has been able to take advantage of the quiet, instant torque and insane speeds only electric power systems can supply. Now its time for 1/5th scale buggies and trucks to experience Castle electric
drive.

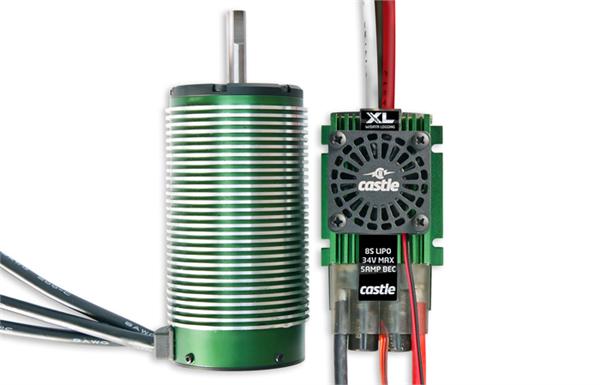

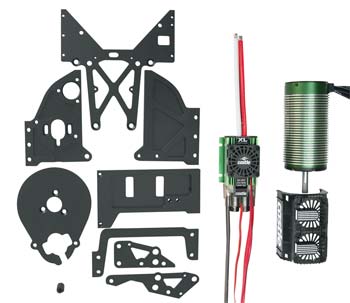

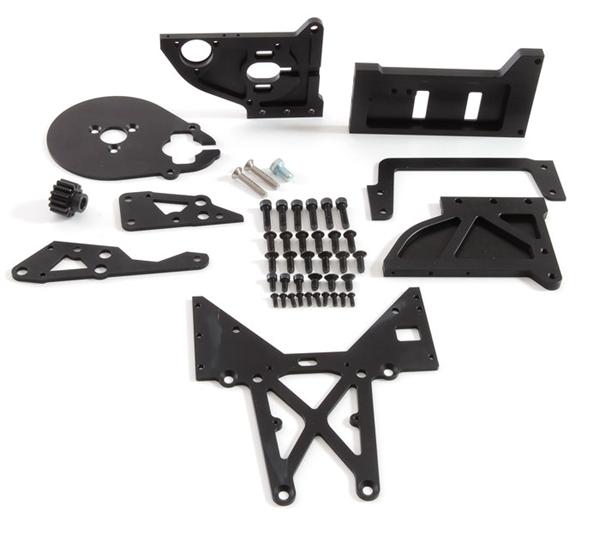

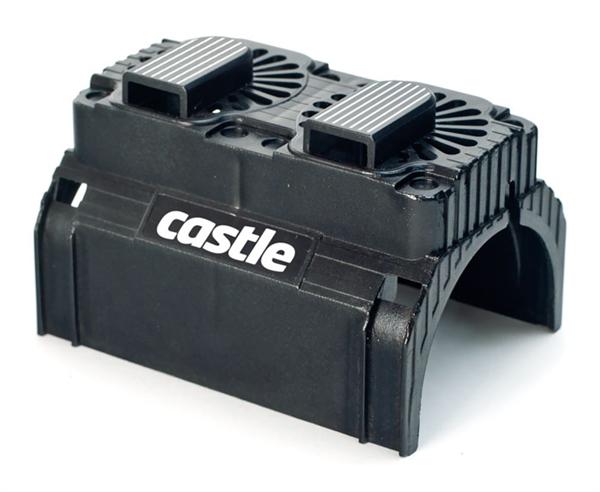

Castle is providing a combo set containing the Mamba XL ESC, a Neu-Castle 2028 brushless motor, CC Blower motor cooling shroud, and all metal brackets required to convert a gasoline powered HPI Baja to mind blowing electric power.

The new Mamba XL is the only controller on the market able to handle the loads required to power these surprisingly heavy vehicles to insane speeds. We can prove it too, as the Mamba XL features all of the standard Mamba series programming features PLUS a first for the RC car market; data logging.

The controller actually measures and records parameters such as your battery volts, amp draw, motor rpm, controller temperature and battery ripple voltage. This is a great way to make sure that the entire setup is performing within limits. It's also a great way to show that this combo is easily capable of pumping out up to 10 horsepower (peak).

This electric setup makes the stock gas engine look positively anemic.

The Baja chassis has plenty of room for up to 8S 2P LiPo, (33.6 volts). Run times with 8S 1P 5,000 mAh class cells are approximately 15 minutes – depending on driving style.

The on board switching BEC is able to lower that motor pack voltage to 5 volts, at up to 5 amps to provide the power needed by those big steering servos.

One more thing. Baja users can step into the future – and actually go backwards. Those annoying walks out to free the gas powered buggies are history!

Applications: HPI Baja 5B and 5T vehicles. Motor and controller will work in other vehicles, conversion kit plates are engineered specifically for the HPI products.
