44151 - Hitec X4 4Ch Multicharger
|
|
In Stock
Part Number: HRC44151
Manufacturer: Hitec
Manufacturer Part No: HRC44151
|

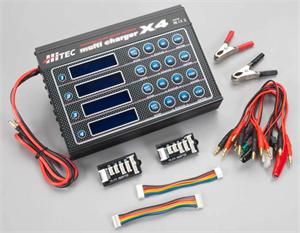

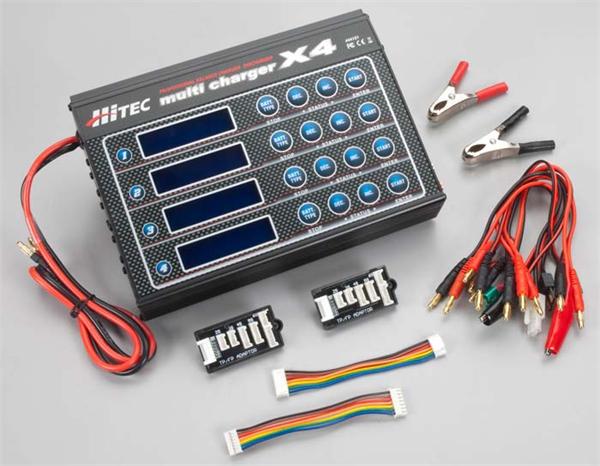

This is the DC Powered Balancing Multi Charger X4 Battery Charger from Hitec.
FEATURES: Charges up to four batteries of different chemistry at one time
Charges 1-6 cell LiPo Li-Ion and LiFe batteries, 1-15 NiCd and
NiMH cells and 1-10 cell lead acid batteries
Individual lithium cell voltage balancer at each charging port
Each charging port delivers 50W of power
Charge cycle for lithium batteries can be speeded up to reduce charge
time or lengthened to increase battery storage life
Delta peak sensitivity
Data storage for up to ten different batteries
PC connection via USB port allows viewing charge and discharge
curves, voltage, temp & amps, individual curves can be suppressed
or superimposed for a visual comparison of data
Dual fan cooling system
USB port also provides 5V. 1A continuous current for cell phones,
digital cameras, IPods and more (USB adapter not included and must
be purchased separately)
INCLUDES: Hitec Multi Charger X4 Battery Charger, 12AWG DC Power Cables
with Bullet Connectors and Alligator Clips, one each Futaba RX,
Tamiya, Traxxas and Multiplex Charge Cables, Charge Cable with
Alligator Clips, 18AWG Charge Cable and Instruction Manual
REQUIRES: DC power supply
SPECS: Operating Voltage Range: DC 11-15.0V
Power Source: 12V DC
Charge Power: 50W regulated
Discharge Power: 5W regulated
Cell Count: 1-6 LiPo/Li-ion/LiFe cells
1-15 NiCd/NiMH cells
1-10 lead acid cells (2-20V)
Current Drain for Balancing Lithium: 300mA
Charge Termination: NiCd/NiMH, automatic delta peak method
Lead Acid & Lithium, automatic voltage-dependent
CC-CV process
Dimensions: 8.9 x 6.2 x 2.4" (225.4 x 158.6 x 62.4mm)
Weight: 2.4lbs (1.09kg)
|
|
|
