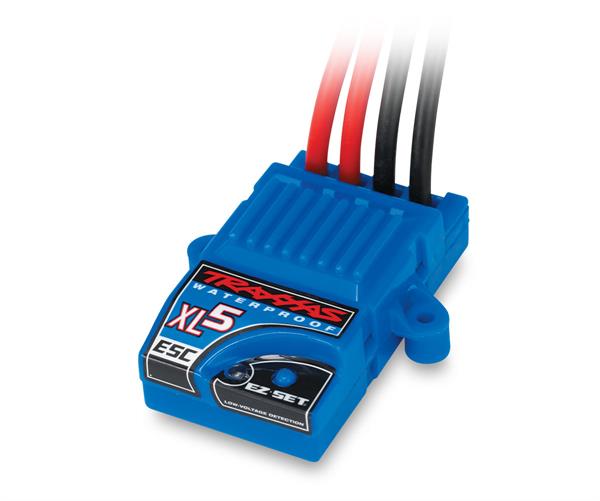

3018R - Waterproof XL-5 ESC Low Voltage Detection
|
|
List Price: $98.35
Your Price: $75.65
Out Of Stock
Part Number: TRA3018R
Manufacturer: Traxxas
Manufacturer Part No: TRA3018R
|
| Input voltage: |
|
4-7 Cells (4.8 to 8.4 Volts DC) |
| Case Size: |
|
1.23"W x 2.18"D x 0.61" H |
| Weight: |
|
2.44 Ounce |
| Motor Limit: |
|
15-turns** (540 Size)
12-turns** (550 Size) |
| On Resistance Forward: |
|
0.007 Ohms |
| On Resistance Reverse: |
|
0.014 Ohms |
| Peak Current - Forward: |
|
100A |
| Peak Current - Reverse: |
|
60A |
| Braking Current: |
|
60A |
| Continuous Current: |
|
14A |
| BEC Voltage: |
|
6.0 VDC |
| BEC Current: |
|
1A |
| Power Wire: |
|
14 Gauge / 5" |
| Input Harness Wire: |
|
26 Gauge / 9" |
| Transistor Type: |
|
MOSFET |
| PWM Frequency: |
|
1600 Hz |
| Low Voltage Detection (LVD): |
|
2-Stage indicators, switchable (on or off) |
| Thermal Protection: |
|
Thermal shutdown |
| Profile selection: |
|
Sport Mode:
100% FWD, 100% brakes, 100% REV
Race Mode:
100% FWD, 100% brakes, no REV
Training Mode:*
50% FWD, 100% brakes, 50% REV |
| Single-button setup: |
|
Yes, Traxxas EZ-Set® |
|
|
**Properly geared *Patented |
|
|
|
|
|
