10059 - A-Pivot with 1 Degree Insert for the Losi 5ive-T by ADI

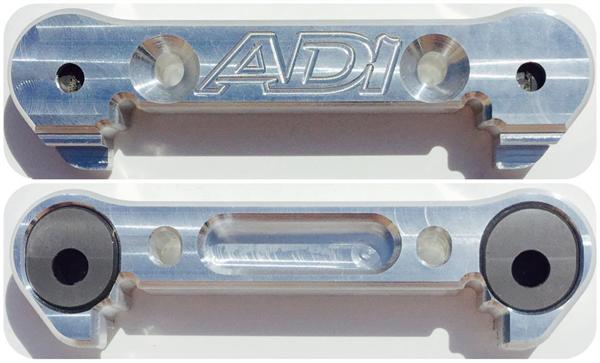

The ADI Losi 5 A-Pivot, #10059, is made in-house, from 6061-T6 aluminum with the ADI logo engraved. This new pivot uses adjustable inserts to help dial-in your suspension geometry. This A-Pivot comes with 1 degree inserts that allows for +/-1 degree of kick up adjustment from stock position. This part is to be used with the stock Losi 5 B-Pivot.

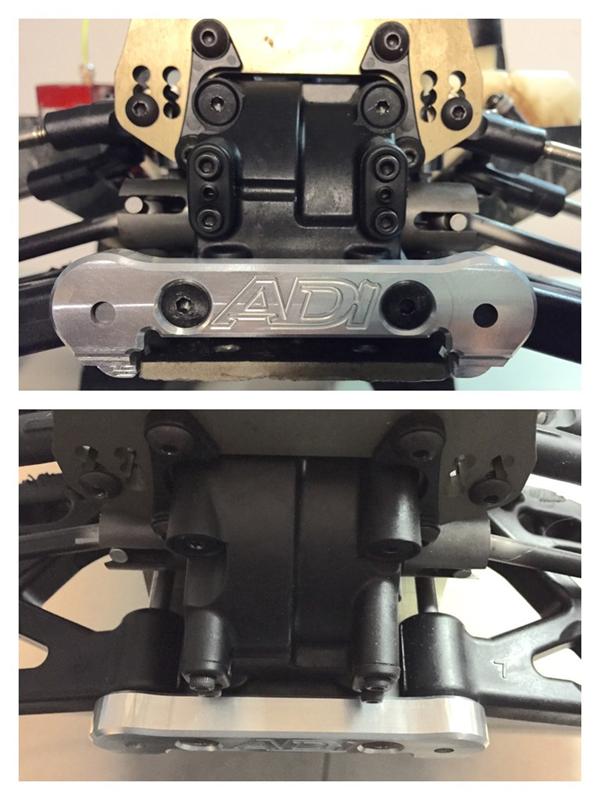

Out testing has shown that either the Truck or Buggy conversion work best with the 1 degree adjustment in the down position. We also lengthened the front shock to 51mm; measured from the o-ring cap to the shock eyelet flat. Please see the picture for clarification. The front shock mounting locations are top/middle and bottom/inside.
